Mountings on Truck Chassis

UpdatedDecember 26, 2005
backhomedown



upAntiaircraft

76.2 mm AA guns mounted on YaG-10 truck chassis A 76mm anti-aircraft guns "3K" mounted on the YaG-10 trucks. Model 1931. (61 units produced. were deployed in Moscow military district) [1]
YaG-10 Abandoned AA mounting on YaG-10 chassis. [6]

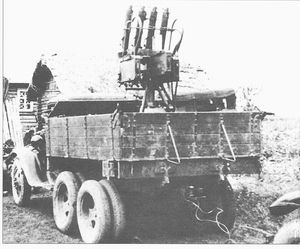

Anti-Aircraft macine-gun system - quadrupled "Maxim" 7.62 mm machine-gun system mounted on GAZ-AAA truck chassis. Anti-Aircraft machine-gun system - quadrupled "Maxim" 7.62 mm machine-gun system mounted on GAZ-AAA truck chassis. [1]
GAZ-AAA 25mm antiaircraft gun mounted on GAZ-AAA chassis [7]
GAZ-AAA antiaircraft M4 quadrapled 7.62 "Maxim" devices mounted on GAZ-AAA chassis. Moscow, Nov. 7, 1938 [8]
AA GAZ-AAA DShK 12.7mm antiaircraft machine-gun mounted on GAZ-AAA chassis.Crew of Gds. Sergeant Radchenko, the 1st Ukrainian Front, 1943 [8]
25mm AA mount 25mm automatic AA guns installed in GAZ-AA (or GAZ-MM) truck bodies [9]
25 mm 25mm AA gun mounted on GAZ-MM chassis. Vyborg direction, summer, 1944 [9]


upSU-1-12

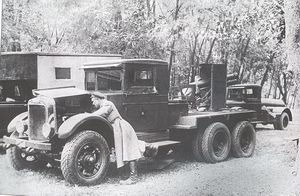

SU-1-12 SP gun based on Moreland chassis. Kiev district, 45th Mechanised Corps, autumn 1933 SU-1-12 SP gun based on "Moreland" chassis. Kiev district, 45th Mechanised Corps, autumn 1933 [1]
"Moreland" - based SU-1-12 self-propelled gun on maneuvres. Kiev district, 45th Mecanised corps, autumn 1933 "Moreland" - based SU-1-12 self-propelled gun on maneuvres. Kiev district, 45th Mecanised corps, autumn 1933 "Moreland" - based SU-1-12 self-propelled gun on maneuvers. Kiev district, 45th Mechanised Corps, autumn 1933 [1]
SU-1-12 SU-1-12 [3]
SU-1-12 SP gun A GAZ-AAA truck based 76mm regimental SP gun M1927 (SU-1-12). Gun battalion 11th Tank Brigade. May 1939. Khalkhin-Gol [2]
SU-1-12 based on GAZ-AAA chassis at the parade in Moscow. Nov. 7, 1936. The gun has shield of the late version. SU-1-12 based on GAZ-AAA chassis at the parade in Moscow. Nov. 7, 1936. The gun has shield of the late version. [2]

SU-1-12

SU-1-12

SU-1-12 blueprint [10]

  1. Gun;
  2. Shield;
  3. Flat;
  4. Towing gear;
  5. Reflector;
  6. Pedestal;
  7. Left caisson;
  8. Right caisson;
  9. Toolbox;


upRecoilless Guns

SPR 76.2 mm gun Recoilless 76.2mm SP gun mounted on GAZ-TK truck. [1] 23 vehicles built. Two of them used in Winter War.
Self-propelled 76mm Kurchevsky gun Self-propelled 76mm Kurchevsky's gun mount on the GAZ-TK (SPK) automobile. The 9th Army zone, the 4th separate recon battalion of the 44th Rifle Division, December 1939. [4]


upField Modifications

45mm gun mounted on ZIS-5 armored car. Leningrad Front, 1941 45mm Anti-tank gun mounted on ZIS-5 armored car chassis. Leningrad Front, November, 1941 [1]
ZIS-5 with 21-K AA gun 45mm naval anti-aircraft gun 21-K mounted on armored ZIS-5 chassis. Leningrad Front Oct.-Nov, 1941 [5]

Literature
  1. M. Kolomiets, M. Makarov. "Samokhodnaya Artilleriya Krasnoy Armii 1941-1945". Frontovaya Illyustratsiya, No 4, 2002
  2. "Boi u reki Khalkhin-Gol", Frontovaya Illyustratsiya, No. 2, 2002
  3. "Artilleriya i minomety XX veka", Smolensk, Rusich, 2001
  4. M. Kolomiets. "Tanki v Zimnei Voine 1939-40", Frontovaya Illyustratsia, 3/2001
  5. I. Moshchanskiy, D. Sakhonchik. "Blokada Leningrada. Kontrnastupleniye pod Tikhvinom 10 Noyabria-30 Dekabria 1941 goda" , Voyennaya Letopis' /Military Chronicle, 2/2004
  6. E-bay preview
  7. "Tanki Vtoroy mirovoy voiny" (Album) Moscow, Technika-Molodezhi, 2000
  8. M-Hobby, 5/1999
  9. M-Hobby, 9/1997
  10. M. Baryatinskiy, "Polutorka strelyaet s khodu", (article from unknown source);
