IS-1

(Blueprints)

UpdatedMarch 29, 2008
backhomedown




IS-1 slit [1] NEW

IS-1 [3]NEW

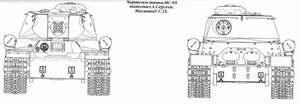

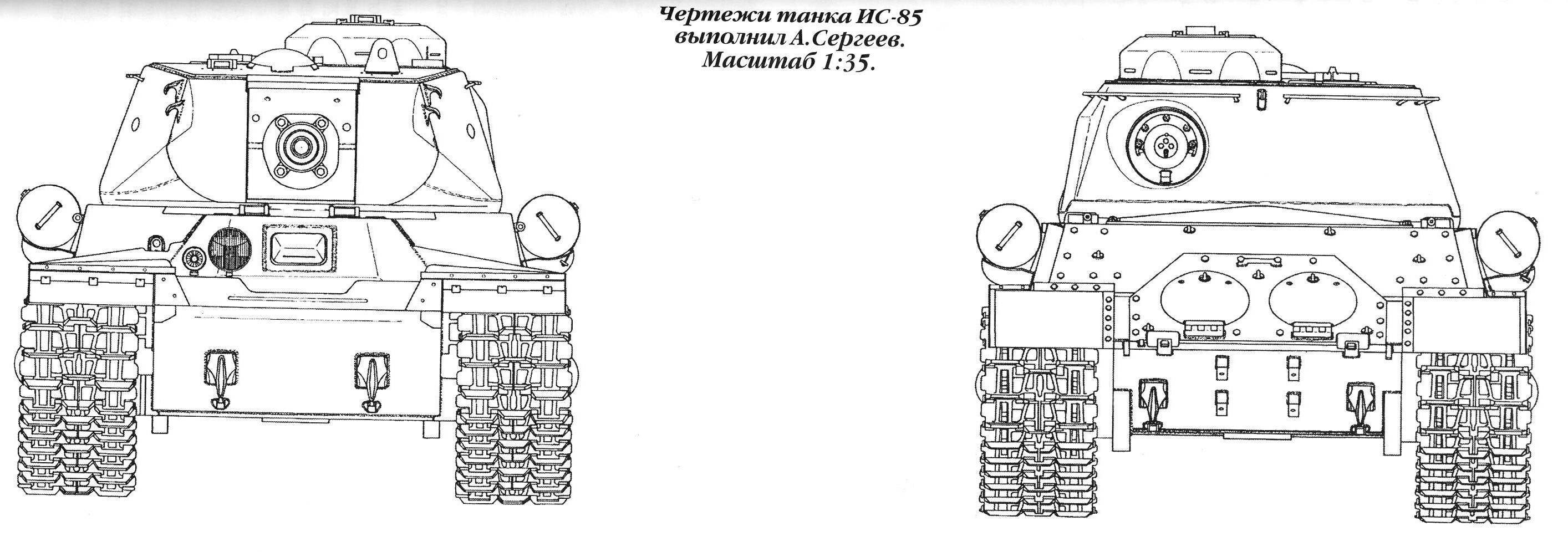

IS-1 blueprints [4] NEW

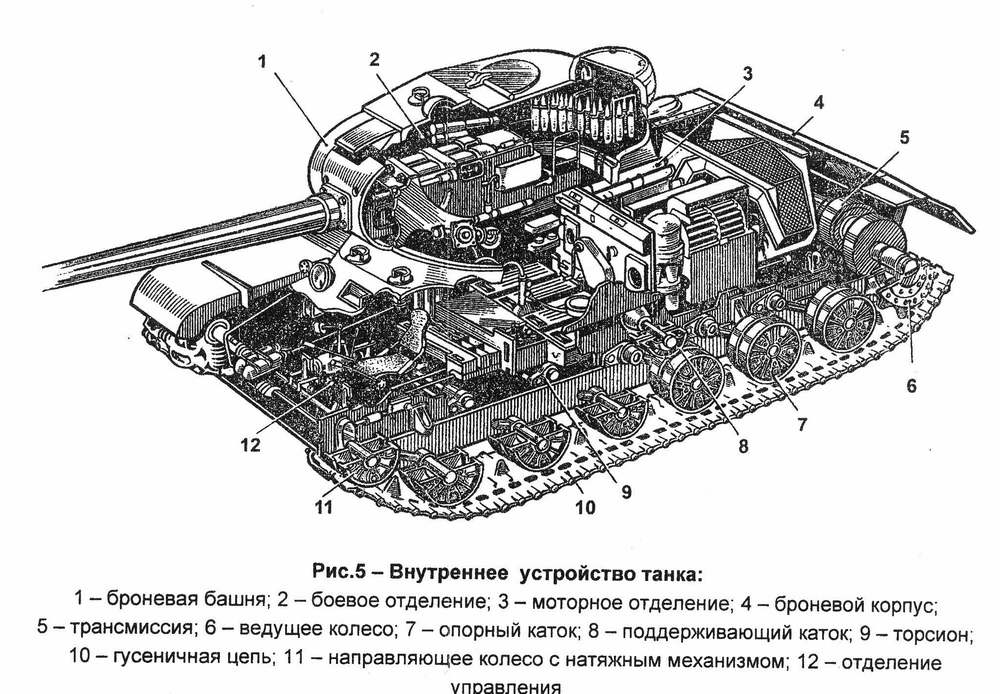

Slit of IS-1 [1] NEW

Diagramme key:

  1. Armored turret
  2. Combat section
  3. Engine section
  4. Armored hull
  5. Transmission
  6. Driving-wheel
  7. Road wheel
  8. Supporting roller
  9. Torsion bar
  10. Track
  11. Idler with stretching device
  12. Control section

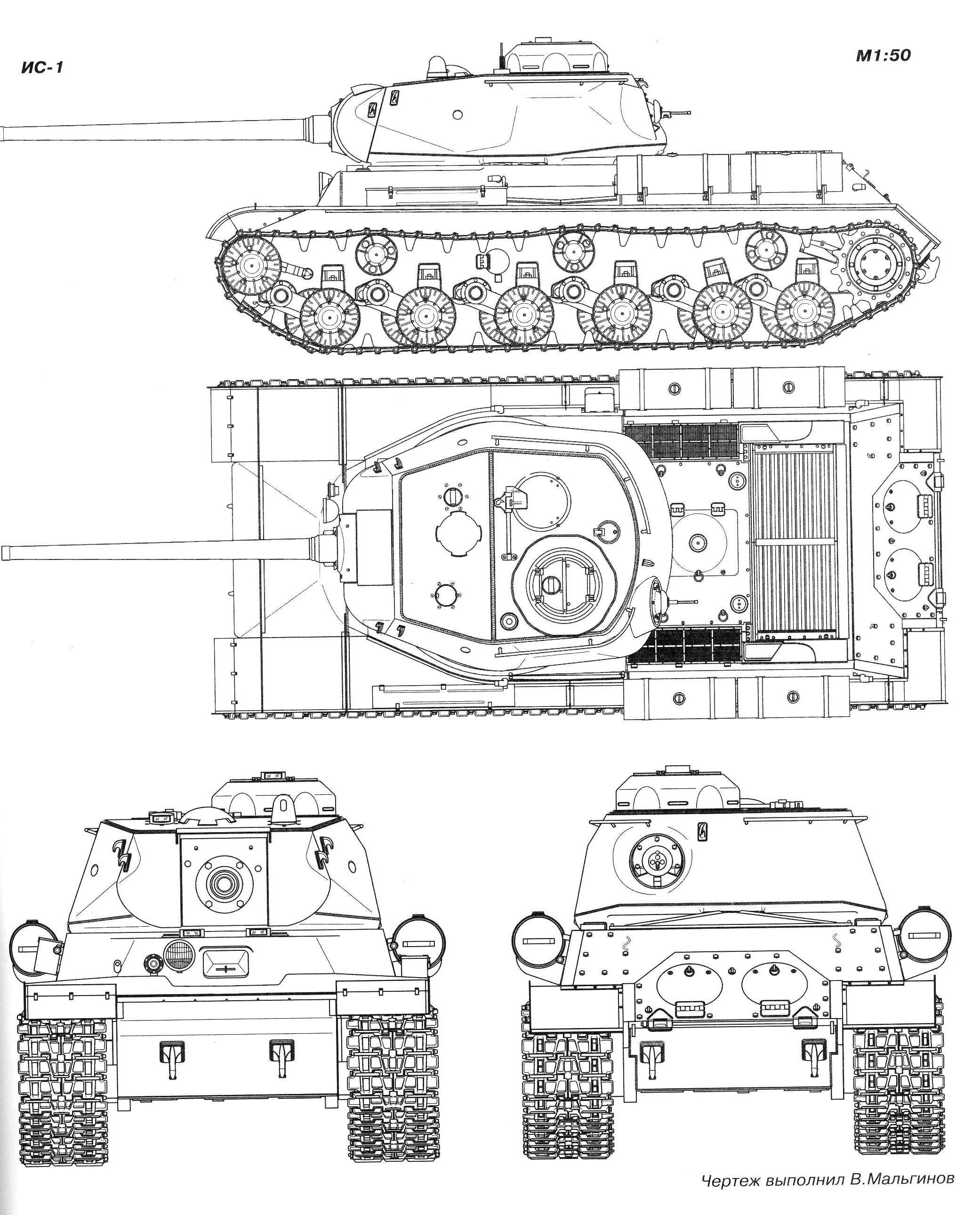

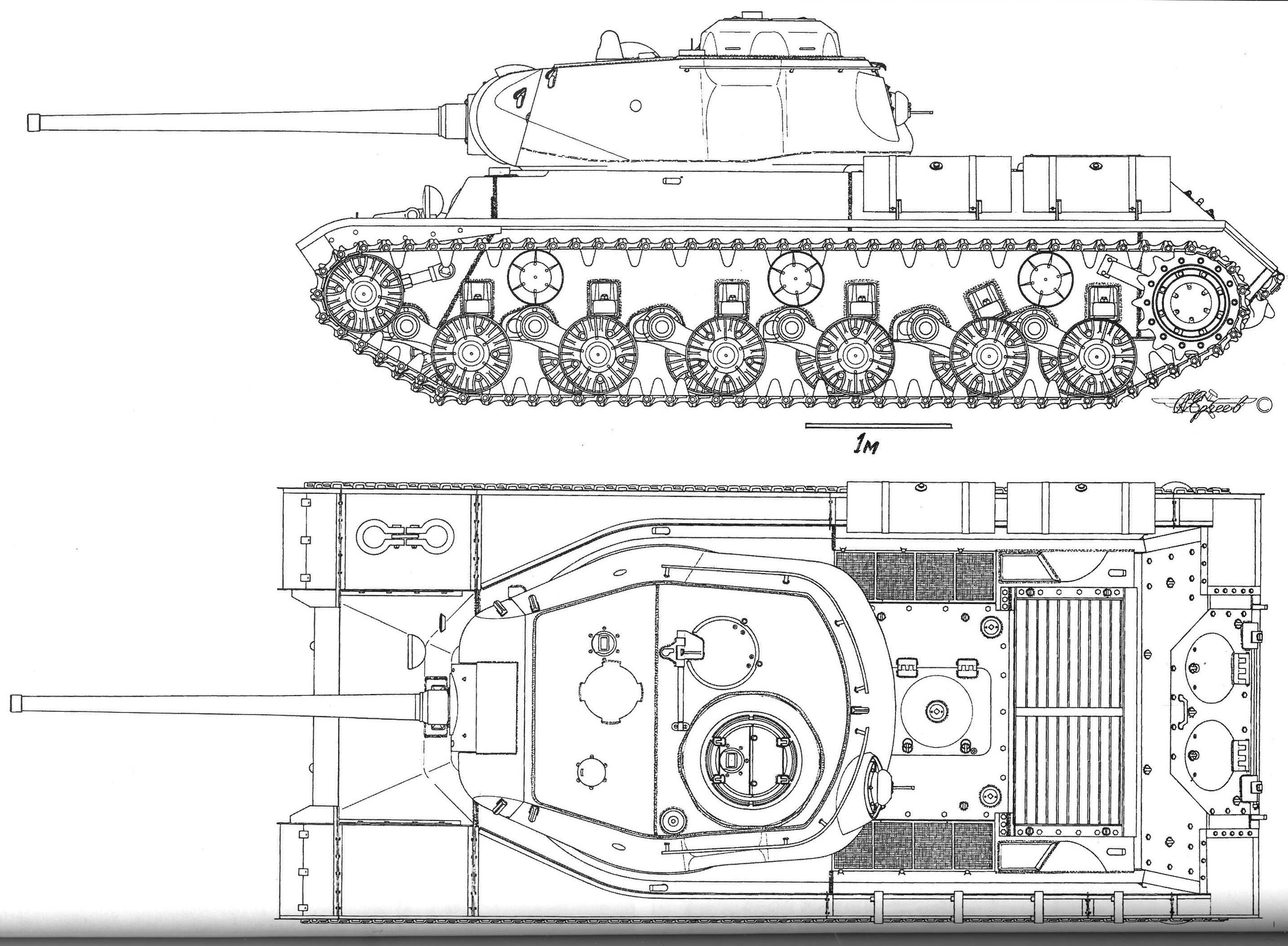

IS-1 general view [1] NEW

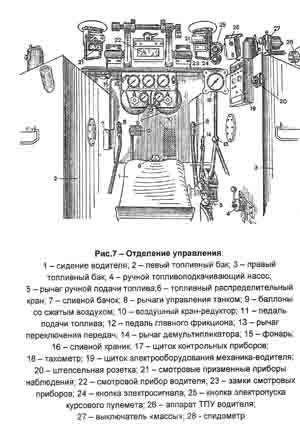

Control section interior [1] NEW

  1. Driver seat
  2. Left fuel tank
  3. Right fuel tank
  4. Manual fuel-feed pump
  5. Lever of manual fuel feeding
  6. Fuel distributing valve
  7. Discharge tank
  8. Control levers
  9. Air cylinders
  10. Air valve-reducer
  11. Fuel feeding pedal
  12. Pedal of the main clutch
  13. Gear-change lever
  14. Dual high transmission lever
  15. Lamp
  16. Discharge cock
  17. Control board
  18. Tachometer
  19. Electrical equipment control board
  20. Socket
  21. Observation prism device
  22. Obervation device of a tank-driver
  23. Lock of obervation device
  24. Beep button
  25. Electrical button of machine-gun
  26. Interphone of tank-driver
  27. "Mass" switch
  28. Speedometer

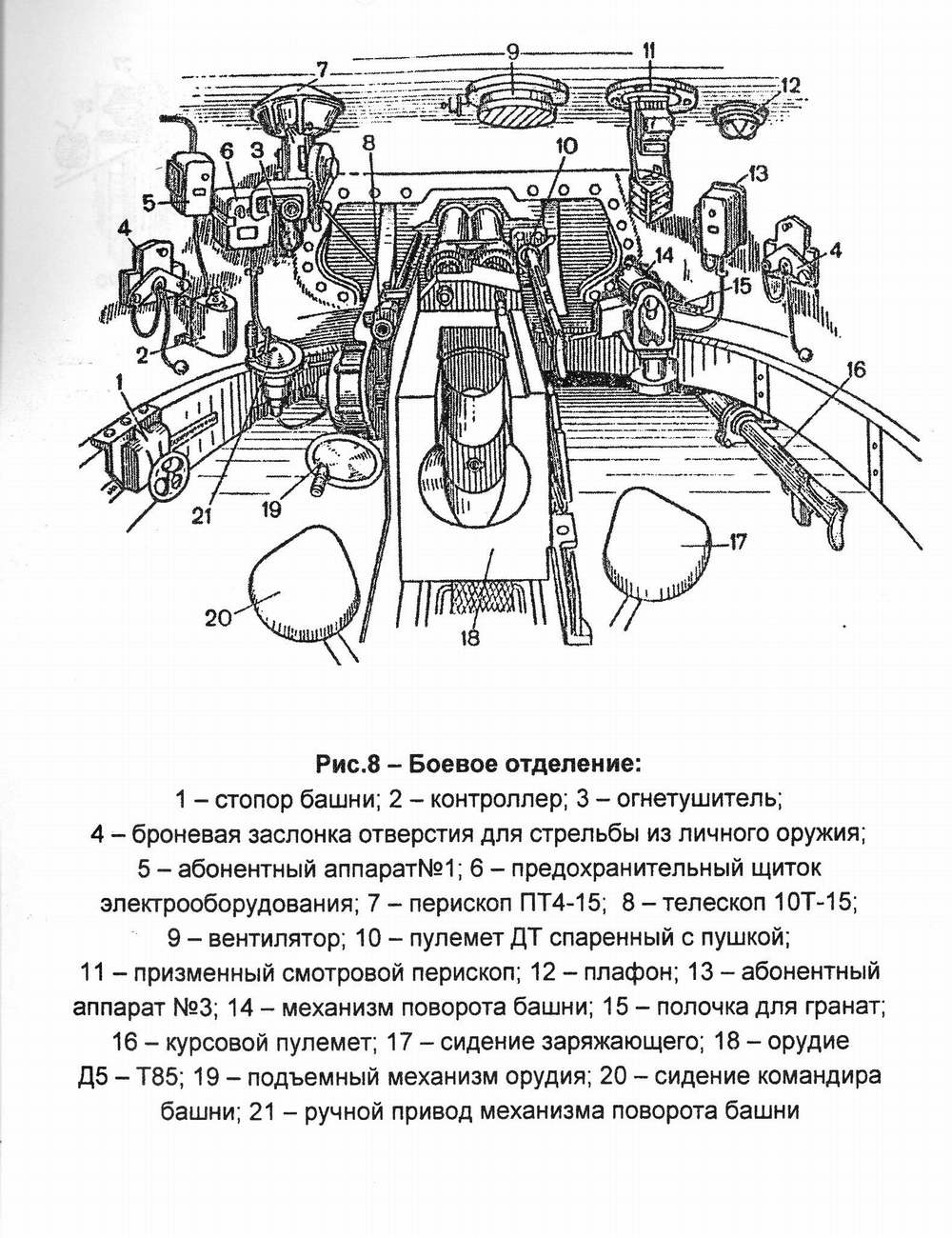

Combat section [1] NEW

  1. Turret locking device
  2. Controller
  3. Fire extinguisher
  4. Armored flap of personal weapon embrasure
  5. Interphone apparatus No. 1
  6. Electrical protection unit
  7. PT4-15 periscope
  8. 10T-15 telescope
  9. Fan
  10. "DT" machine-gun coupled with gun
  11. Prism observation periscope
  12. Shade
  13. Interphone apparatus No. 3
  14. Turret slewing mechanism
  15. Hand grenade shelf
  16. Machine-gun
  17. Seat of loader
  18. D5-T85 gun
  19. Gun hoisting mechanism
  20. Seat of a turret commander
  21. Manual turret slewing drive

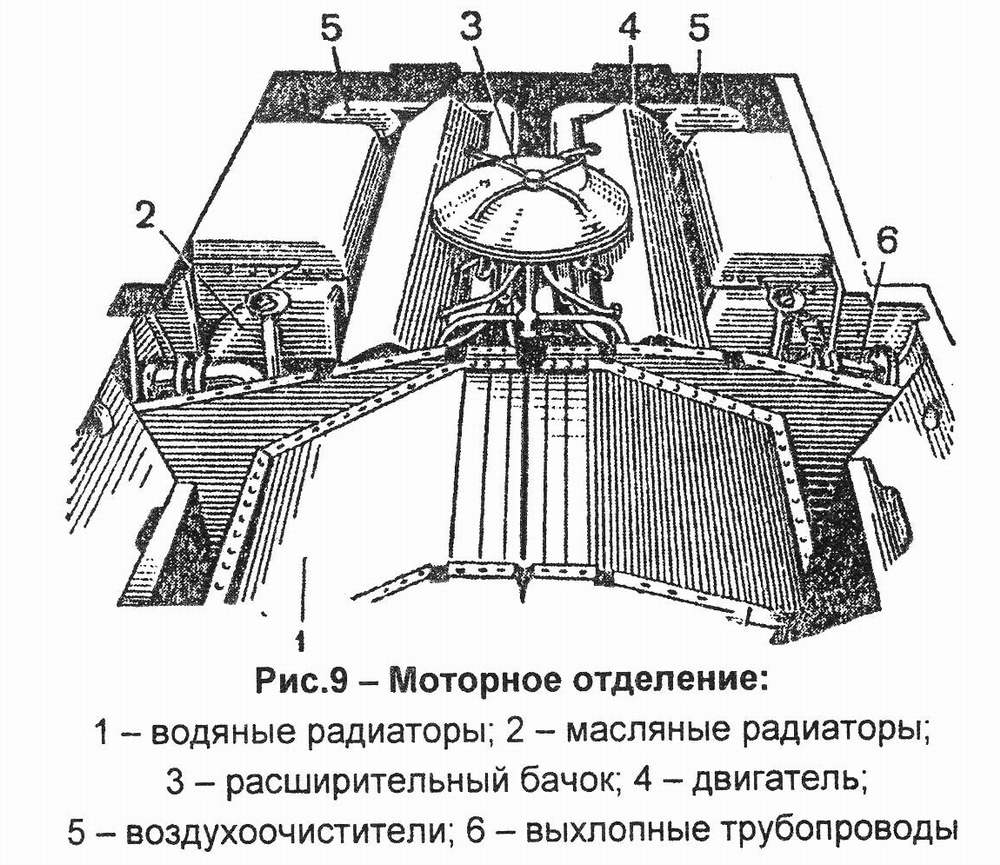

Engine section [1] NEW

  1. Water radiators
  2. Oil radiators
  3. Expansion tank
  4. Engine
  5. Air purifiers
  6. Exhaust pipes

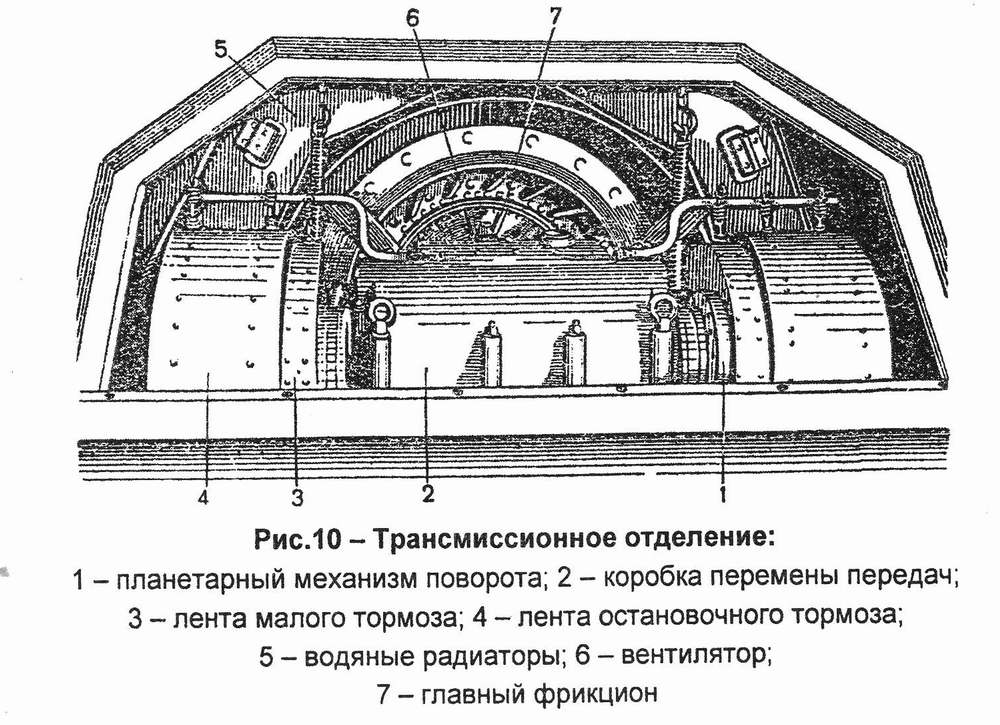

Transmission section [1] NEW

  1. Planetary steering mechanism
  2. Gearbox
  3. Band of small brake
  4. Band of hand brake
  5. Water radiators
  6. Fan
  7. Main clutch

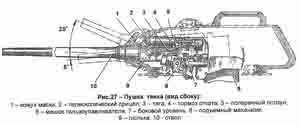

Gun [1] NEW

  1. Jacket of mask
  2. Telescopic sight
  3. Rod
  4. Recoil brake
  5. Transversal slider
  6. Bgg of the case trap
  7. Side level
  8. Hoisting mechanism
  9. Gun-cradle
  10. Barrel

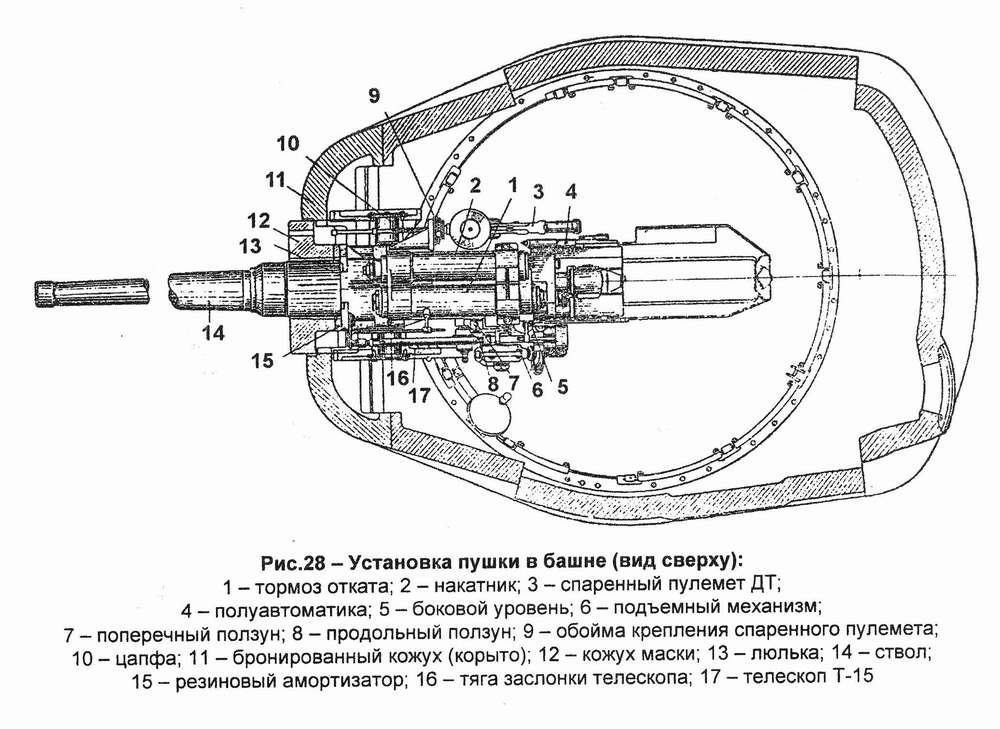

Gun [1] NEW

  1. Recoil brake
  2. Burnisher
  3. "DT" machine-gun coupled with gun
  4. Semi-automatic
  5. Side level
  6. Hoisting mechanism
  7. Transversal slider
  8. Lengthwise slider
  9. Machine-gun fastening holder
  10. Trunnion
  11. Armored jacket (launder)
  12. Mask jacket
  13. Gun-cradle
  14. Barrel
  15. Rubber shock-absorber
  16. Rod of a telescope shutter
  17. T-15 telescope

Engine partition[1] NEW

  1. Upper slide gates
  2. Louvre drive handwheel
  3. Protective cover
  4. First-aid set
  5. Tank commander seat
  6. Drinking tank
  7. Slide gates
  8. Light port glass
  9. Slide gates
  10. Cover of inertia starter
  11. Water pump syringe

Underturret box [1] NEW

  1. Underturret belt
  2. Engine partition
  3. Hole of a prism observation device
  4. Fuel mouth cork

Turret [1] NEW

  1. Eyebolt
  2. Machine-gun lug
  3. Hole for personal weapon
  4. Commander cupola
  5. Protection collar of antenna outlet
  6. Lock of access hatch
  7. Torsion bar
  8. Hole for armored cap of the PT4-15 periscopic sight
  9. Armored cap of the periscopic obervation device
  10. Armored cap of ventilation hatch
  11. Locking device
  12. Access hatch cover

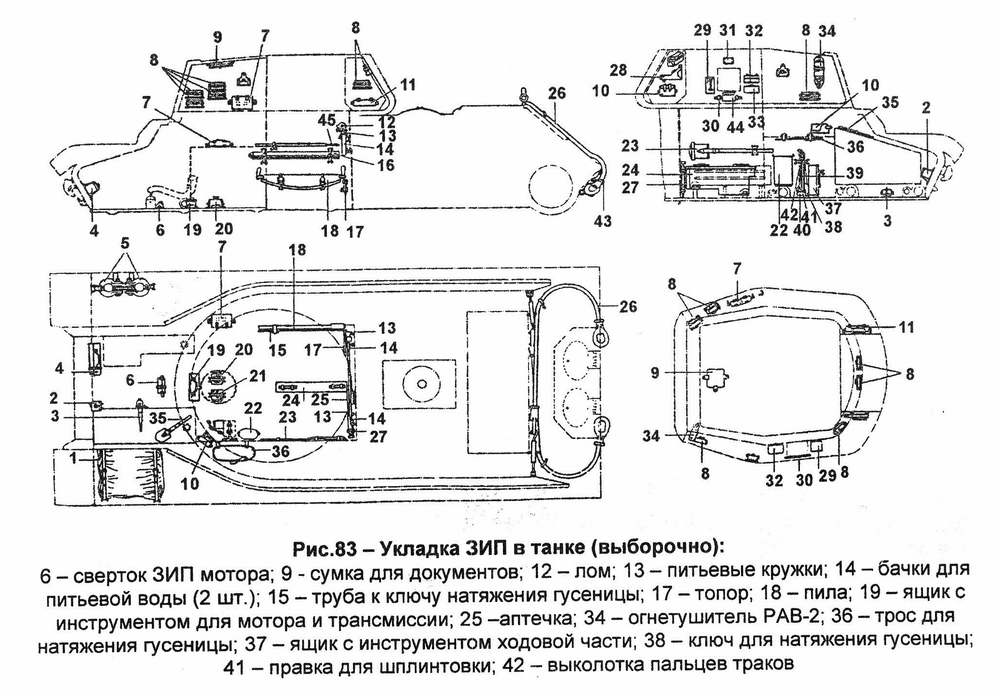

Toolbox, sparses and instrument placement [1] NEW

Rem. AMVAS: Not all positions are described

6. Engine sparses package

9. Documents bag

12. Crow-bar

13. Mugs

14. Two drinking water tanks

15. Pipe of spanner for track tension

17. Axe

18. Saw

19. Engine and transmission toolbox

25. First-aid set

34. RAV-2 fire extinguisher

36. Hawser for track tension

37. Running gear toolbox

38. Spanner for track tension

Fire angles[1] NEW
IS-1 armour plating diagramme [2] NEW


Literature
  1. Tyazhelyi tank IS-1 (s pushkoi D5-T85), Moscow, 2008 (?) (rem. AMVAS - no output data for this edition. Probably it is composed from fragments of IS-1 manual)
  2. "Otechestvennye bronirovannye mashiny. XX vek" : nauchnoe izdanie v 4-kh tomakh/ Solyankin A.G., Pavlov M.V., Pavlov I.V., Zheltov I.G./ Tom 2.  "Otechestvennye bronirovannye mashiny. 1941-1945" , Moscow, Exprint, 2005
  3. I. Zheltov et. al., Tanki IS, Tankomaster, special issue, Moscow, 2001
  4. M. Baryatinskiy, "tyazhelyi tank IS-2. Nash otvet "Tigram"", Moscow, Yauza, Eksmo, 2006
